Gonzo Racing 5/1600 Post Roll-Over Rebuild

[Gonzo 5/1600]

You do it verry well, excellent fab work.

Thank you very much! I try to do quality work with the time and resources I have available to me. I aspire to product the quality of work in the "Pretty Welds" thread...

[SPONSOR]

Membership in the largest desert racing community has its advantages - Participate in Forum Discussions - Send and Receive Private Messages - Maintain Public Photo Albums - Access to Groups - User Profile in our Social Network - Increased Access to more Sub Forums - Reduced Online Advertisements Join our community today

[Gonzo 5/1600]

Starting to go back together into a roller with new trailing arms front and rear... The front end is pretty much all together less steering, and the rear end is back on the wheels ready for the drivetrain to go back in.










Gotta straighten a tie rod, and put get the rack together then we'll be able to roll the car around again. Currently leaving out things like seats, shocks etc until after paint to improve access.

[rotkiv001]

Nice Trevor! so its almost ready...hadent checked the shop section in a while and i found a great susprise...keep it going...

also the 1/1600 was a good option!


vic

[Gonzo 5/1600]

Que onda Victor, casi listo para la mil! We're still looking into a 1/1600 for the future. Any new progress on your 1600?

[rotkiv001]

Well we have all the $$$ parts on hand, just wating to finish some welding of the rear trany, engine mount and rear arms travel so we can have it rolling,
the good thing is that we have micros, cv's torsion bars, spring plates, shcoks, fuel cell etc etc

i will send you some pics on the weekend

vc

[WALSHMOTORSPORTS]

I love these builds!

[Gonzo 5/1600]

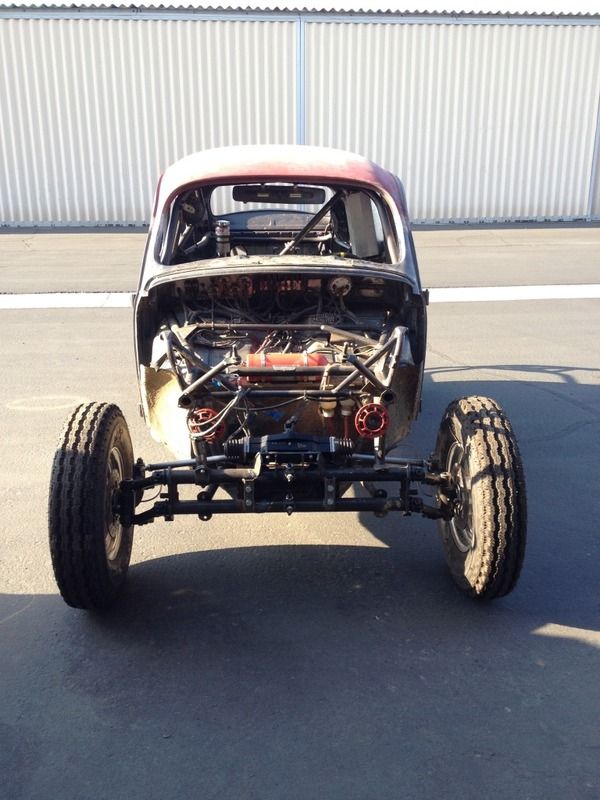

Back on its wheels! No more tweaked stance. Jut got our engine back too, so now it's a few odds and ends, bodywork/paint, and reassembly.

[steve0we]

The car is looking very good! When I have sleeved tubes, I have cut the outer sleeve with a lets say 45 degree cut on both ends so that the weld doesnt affect the original tube all in one place. Does that make sence? anyone have other ideas?

Glad to see the car being re-built better and that its going to be back out racing. Keep up the good work!

[Gonzo 5/1600]

The car is looking very good! When I have sleeved tubes, I have cut the outer sleeve with a lets say 45 degree cut on both ends so that the weld doesnt affect the original tube all in one place. Does that make sence? anyone have other ideas?

Glad to see the car being re-built better and that its going to be back out racing. Keep up the good work!

Thanks! Yeah I thought about that... everywhere I externally sleeved is just support structure and will likely only see compression loads, so the tube will probably kink before anything else fails. If I have to sleeve more vital structure in the future I'll see about cuting sleeves on the bias.

[Gonzo 5/1600]

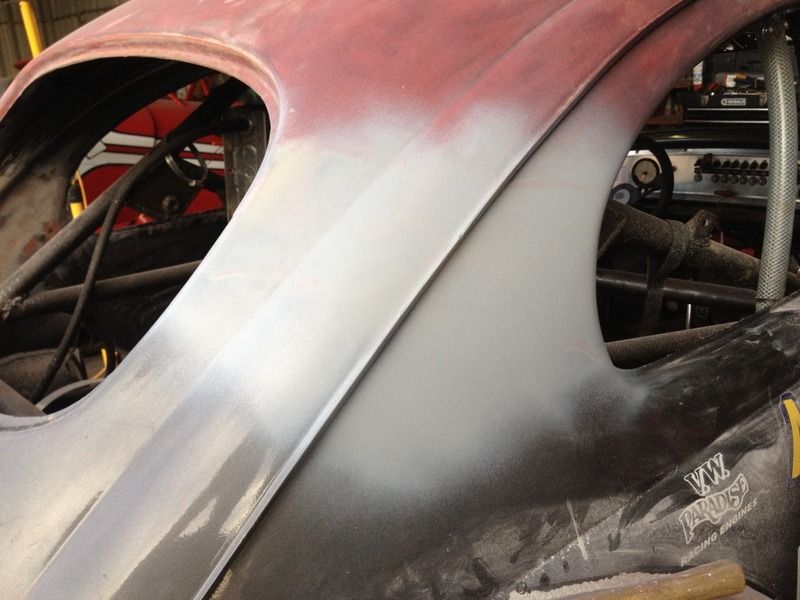

Been spending most of my time in the shop doing body work, but the exterior is looking pretty good.



The 5 other new joints are pretty much blended the same.
